Spline Guide Washers

Guide washers are important to help retain the belt on the the pulleys and to keep them separated on multiple pulley drive stacks.

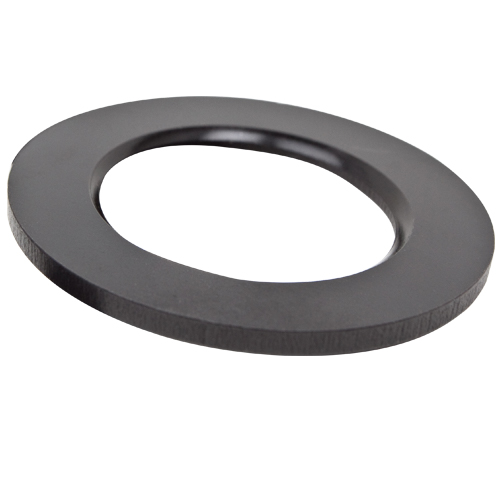

Hub & Cap Guide Washers
Guide washers that fit between the pulleys and the hub or cap on the ends of the drive. They have a smooth bore with a slight radius that matches the hub or cap.

Splined Guide Washers
Guide washers that fit between the pulleys in the stack. They have a splined bore to fit over the spline mandrel and seperate toothed drive pulleys.

Features

6061 T6 billet aluminum

Black anodized for durability

Works with all Peterson Spline Drive components

Specifications

Hub & Cap Guide Washers

Part #	OD	ID
06-0711	2.250"	1.376"
06-0712	2.750"	1.376"
06-0713	3.250"	1.376"
06-0714	3.500"	1.376"

Splined Guide Washers

Part #	OD	ID
06-0734	2.250	1.250" Spline
06-0735	2.750	1.250" Spline
06-0736	3.250	1.250" Spline
06-0737	3.500	1.250" Spline

Part Numbers

Hub & Cap Guide Washers

Part #	Description
06-0711	2.250 dia - for 18-21 tooth HTD & 14-17 tooth Gilmer
06-0712	2.750 dia - for 22-25 tooth HTD & 18-21 tooth Gilmer
06-0713	3.250 dia - for 24-26 tooth Gilmer
06-0714	3.500 dia - for 33 tooth HTD

Splined Guide Washers

Part #	Description
06-0734	2.250 dia - for 18-21 tooth HTD & 14-17 tooth Gilmer
06-0735	2.750 dia - for 22-25 tooth HTD & 18-21 tooth Gilmer
06-0736	3.250 dia - for 24-26 tooth Gilmer
06-0737	3.500 dia - for 33 tooth HTD
