Filters Small Remote Mount

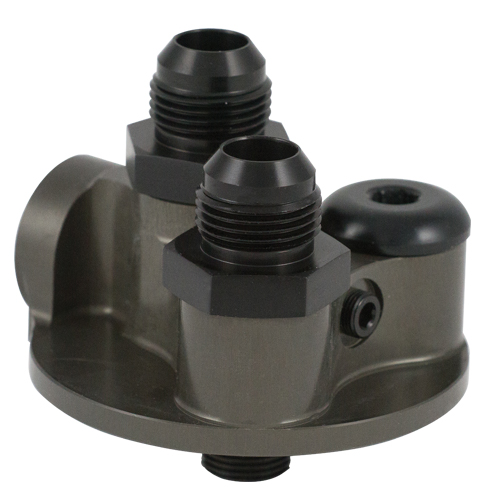

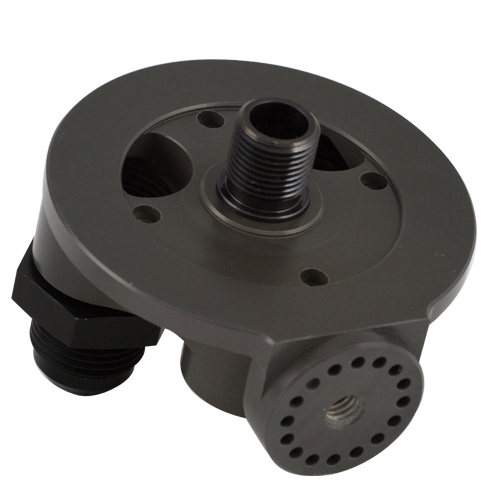

Machined from billet 6061-T6 aluminum and hard coat anodized for durability. Ports are machined for maximum flow and feature a -12 AN Port thread. A 1/8" NPT port is machined into the side of the mount for a temp guage. Mounts comes with (2) port fittings and (1) plug.

Features

6061 T6 billet aluminum

CNC machined for precision

Fully radiused high flow fittings

Hard coat anodized for durability

Part Numbers

13/16"-16 Thread - Chevrolet style

Part #	Description
Firewall Mount
09-1301	-10 AN Fittings
09-1302	-12 AN Fittings
1 1/4" Tube Mount
09-1321	-10 AN Fittings
09-1322	-12 AN Fittings
1 3/8" Tube Mount
09-1323	-10 AN Fittings
09-1324	-12 AN Fittings
1 1/2" Tube Mount
09-1325	-10 AN Fittings
09-1326	-12 AN Fittings
1 3/4" Tube Mount
09-1327	-10 AN Fittings
09-1328	-12 AN Fittings

3/4"-16 Thread - Ford Style

Part #	Description
Firewall Mount
09-1311	-10 AN Fittings
09-1312	-12 AN Fittings
1 1/4" Tube Mount
09-1331	-10 AN Fittings
09-1332	-12 AN Fittings
1 3/8" Tube Mount
09-1333	-10 AN Fittings
09-1334	-12 AN Fittings
1 1/2" Tube Mount
09-1335	-10 AN Fittings
09-1336	-12 AN Fittings
1 3/4" Tube Mount
09-1337	-10 AN Fittings
09-1338	-12 AN Fittings

Accessories

Mount Brackets

Part #	Description
Tube Mounts
09-1590	Fits 1 1/4" Tube
09-1591	Fits 1 3/8" Tube
09-1592	Fits 1 1/2" Tube
09-1593	Fits 1 3/4" Tube
Firewall Mount
09-1594	Large Filter Mount Firewall Mount
Tank Strap Mount
08-2206	6" Tank Strap Mount
08-2207	7" Tank Strap Mount
