The Peterson billet manifolds feature all aluminum construction with an integrated mounting pad. They are available in several configurations and are perfect for all oil or fuel systems where multiple lines need to be condensed to one with optimal flow.
Part # | Length | Width | Height | Mount C to C |
---|---|---|---|---|
10-0030 | 1.563" | |||
10-0031 | 2.750" | 1.750" | .625" | 1.563" |
10-0032 | 1.563" | |||
10-0033 | 3.188" | 2.188" | .875" | 1.563" |
Part # | Length | Width | Height | Mount C to C |
---|---|---|---|---|
10-0034 | 2.750" | 1.938" | 1.250" | 1.563" |
10-0040 | 2.750" | 1.938" | 1.250" | 1.563" |
10-0041 | 1.563" | |||
10-0046 | 2.875" | 1.938" | 1.250" | 1.563" |
Part # | Length | Width | Height | Mount C to C |
---|---|---|---|---|
10-0060 | 2.938" | 1.938" | 1.500" | 1.563" |
10-0061 | 2.938" | 1.938" | 1.500" | 1.563" |
10-0070 | 3.375" | 1.938" | 2.250" | 1.563" |
10-0071 | 3.375" | 1.938" | 2.250" | 1.563" |
10-0080 | 3.313" | 1.938" | 2.250" | 1.563" |
10-0081 | 3.313" | 1.938" | 2.250" | 1.563" |
Part # | Description |
---|---|
10-0030 | Manifold 6 AN x 6 AN x 6 AN |
10-0031 | Manifold 8 AN x 6 AN x 6 AN |
10-0032 | Manifold 8 AN x 8 AN x 8 AN |
10-0033 | Manifold 10 AN x 8 AN x 8 AN |

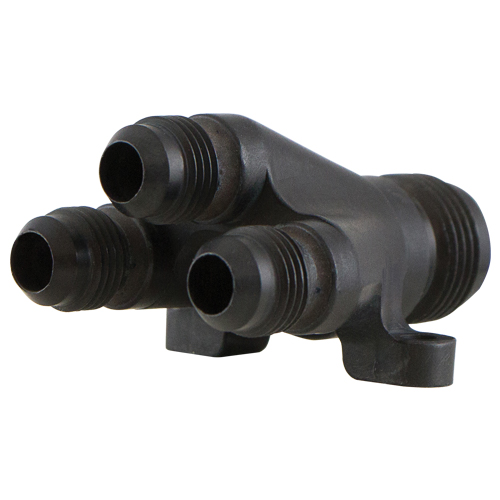

Part # | Description |
---|---|
10-0034 | Manifold 10 AN x 6 AN x 6 AN x 6 AN |
10-0040 | Manifold 6 AN x 6 AN x 6 AN x 6 AN |
10-0041 | Manifold 8 AN x 6 AN x 6 AN x 6 AN |
10-0046 | Manifold 6 AN x 4 AN x 4 AN x 4 AN |

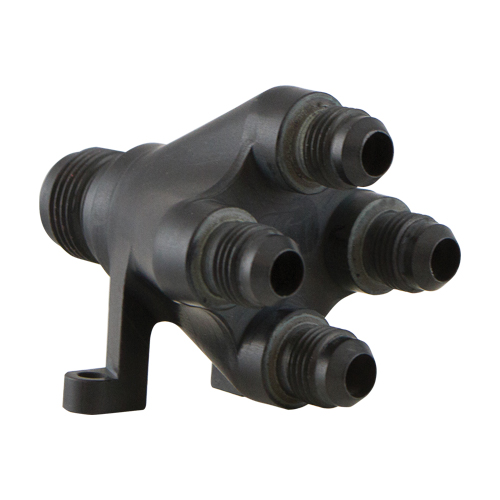

Part # | Description |
---|---|
10-0060 | Manifold 6 AN x 4 AN x 4 AN x 4 AN x 4 AN |
10-0061 | Manifold 8 AN x 4 AN x 4 AN x 4 AN x 4 AN |
10-0070 | Manifold 10 AN x 8 AN x 8 AN x 8 AN x 8 AN |
10-0071 | Manifold 10 AN x 6 AN x 6 AN x 6 AN x 6 AN |
10-0080 | Manifold 12 AN x 8 AN x 8 AN x 8 AN x 8 AN |
10-0081 | Manifold 12 AN x 6 AN x 6 AN x 6 AN x 6 AN |
