Aluminum Tube Manifolds

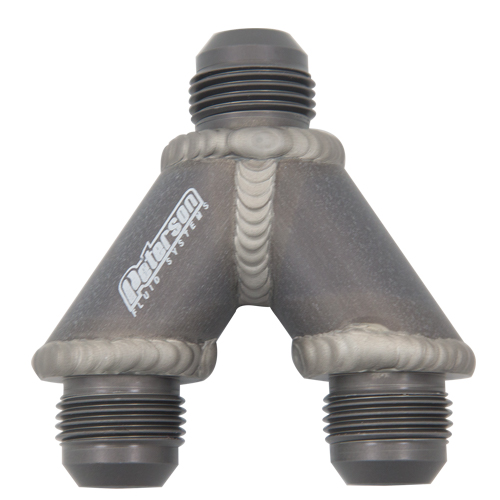

Peterson Y-Manifolds are fabricated to produce a smooth transition from 2 hoses to 1 hose. Available in different configurations, the manifolds can be custom ordered to fit your requirements.
Peterson Y-Manifolds are fabricated to produce a smooth transition from 2 hoses to 1 hose. Available in different configurations, the manifolds can be custom ordered to fit your requirements.
| Part # | Length | Width | Height | Weight |
|---|---|---|---|---|
| -10 AN | ||||
| 10-1709 | 3.75" | 3.25" | 1.25" | |
| -12 AN | ||||
| 10-1711 | 3.8" | 3.125" | 1" | |
| 10-1721 | 3.8" | 3.125" | 1.125" | |
| -16 AN | ||||
| 10-1715 | ||||
| 10-1725 | ||||
| 10-1735 | 4" | 3.75" | 1.5" | |
| -20 AN | ||||
| 10-1729 | ||||
| 10-1739 | ||||
| 10-1749 | 4.25" | 4" | 2" | .42 lb |
| Part # | Description |
|---|---|
| -10 AN | |
| 10-1709 | Manifold -10 AN x -10 AN x -10 AN |
| -12 AN | |
| 10-1711 | Manifold -12 AN x -10 AN x -10 AN |
| 10-1721 | Manifold -12 AN x -12 AN x -12 AN |
| -16 AN | |
| 10-1715 | Manifold -16 AN x -10 AN x -10 AN |
| 10-1725 | Manifold -16 AN x -12 AN x -12 AN |
| 10-1735 | Manifold -16 AN x -16 AN x -16 AN |
| -20 AN | |
| 10-1729 | Manifold -20 AN x -12 AN x -12 AN |
| 10-1739 | Manifold -20 AN x -16 AN x -16 AN |
| 10-1749 | Manifold -20 AN x -20 AN x -20 AN |
